The Surface Mount Field-Selectable LED Panel Series combines sleek, low-profile design with advanced lighting performance and intelligent control capabilities for modern commercial spaces. Featuring field-selectable wattage and 5CCT technology, this surface-mounted LED panel provides outstanding energy efficiency, uniform illumination, and fast, hassle-free installation for both new construction and retrofit applications. Equipped with a sensor-ready receptacle for plug-and-play occupancy and daylight controls, the series supports advanced DLC networked lighting controls, energy monitoring, high-end trim functionality, and optional Bluetooth wireless control.

Ideal for offices, conference rooms, classrooms, healthcare facilities, hallways, retail stores, supermarkets, multipurpose rooms, and other indoor commercial environments where energy efficiency, lighting flexibility, and clean architectural aesthetics are essential.

LPZS14F20283441W27-5CCT

Size:                     1X4                                                   Watts(W):20W/28W/34W/41W. Style:            Field Selectable
Lumens(lm):2833lm/4061lm/ 4563lm/5288lm.                       CCT(K):2700/3000/3500/4000/5000                                                                                  Factory setting: 41W 4000K
Voltage (V): 0-10V Dim 120-277V  Listings: UL DLC Premium                      Stock TX:  560  CA: 48

Spec Sheet
IES File
Installation Guide

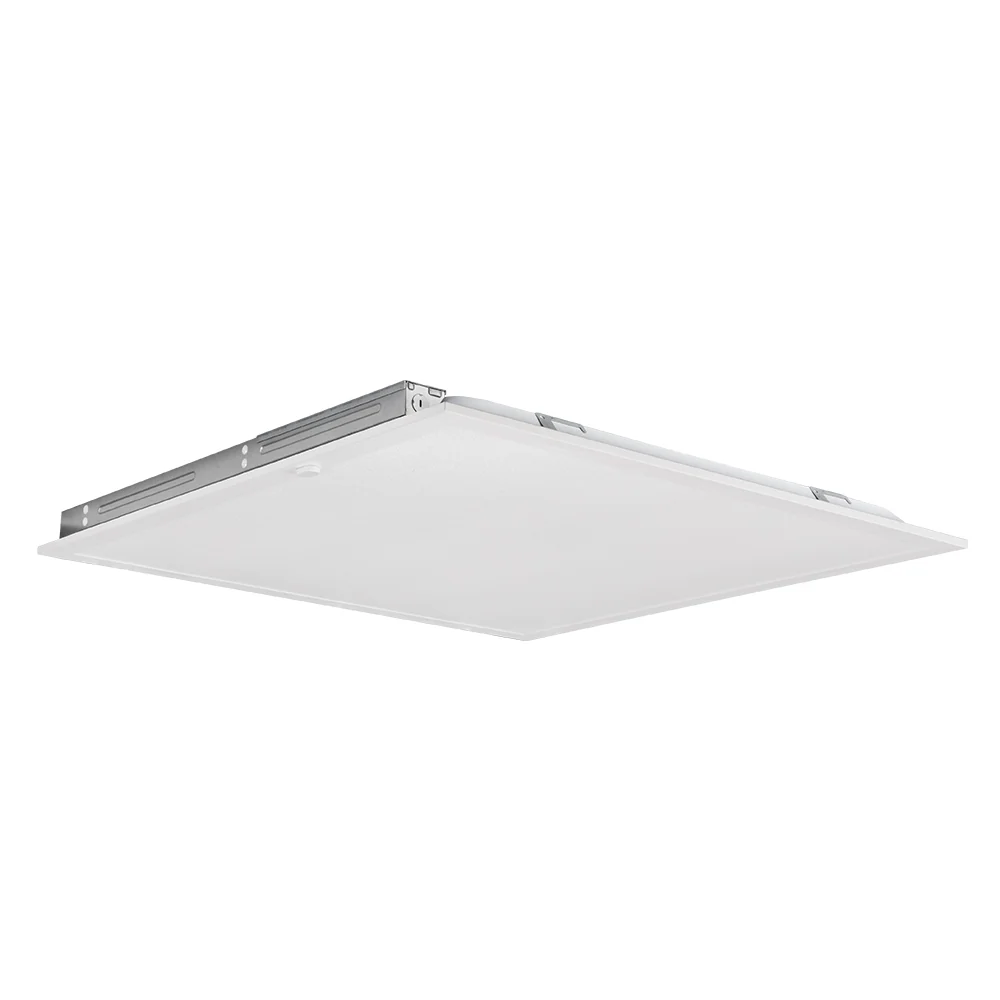

LPZS22F20283441W27-5CCT

Size:                           2X2                                           Watts(W):20W/28W/34W/41W Style:            Field Selectable
Lumens(lm):2600lm/3784lm/ 4279lm/5023lm.                                   CCT(K):2700/3000/3500/4000/5000                                                                                       Factory setting: 41W 4000K
Voltage (V):       0-10V Dim 120-277V
Listings: UL DLC Premium                        Stock TX:  888  CA: 20

Spec Sheet
IES File
Installation Guide

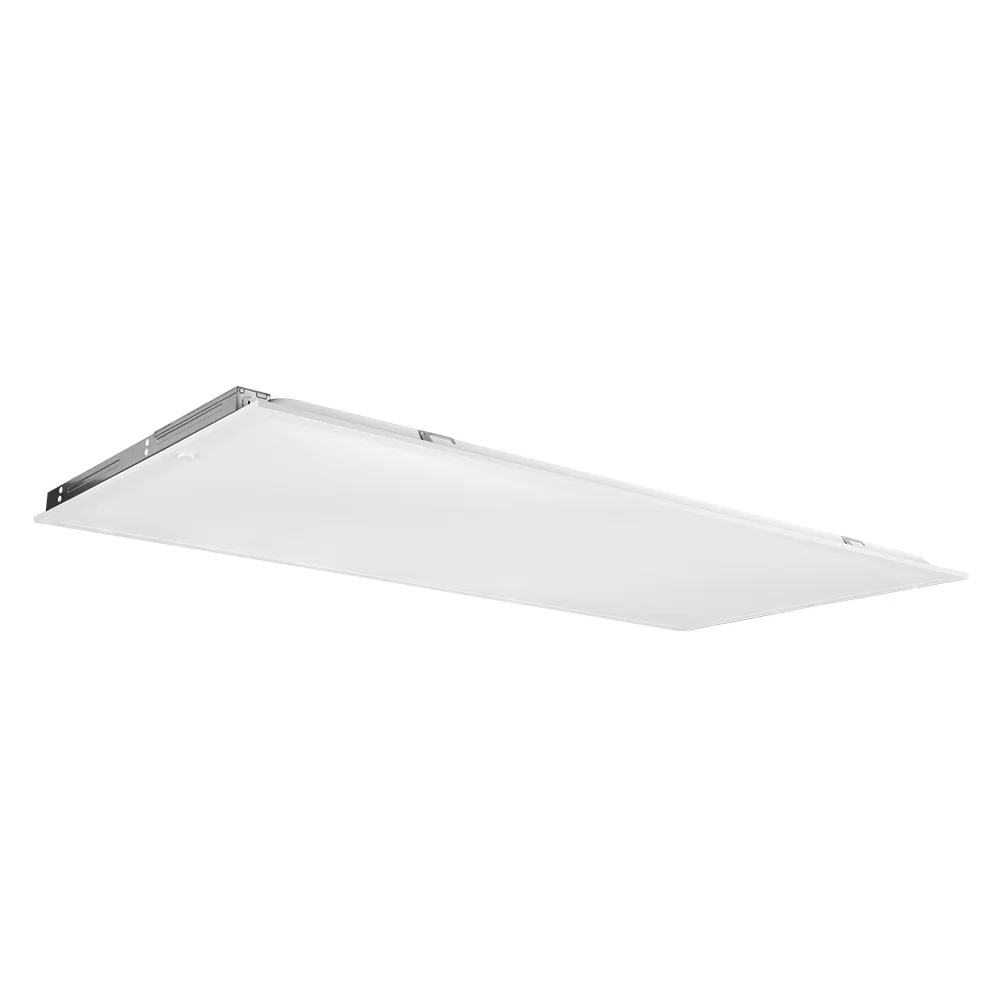

LPZS24F28344150W27-5CCT

Size:                           2X4                                         Watts(W):28W/34W/41W/50W Style:             Field Selectable
Lumens(lm):4018lm/4537lm/ 5271lm/6514lm.                                        CCT(K):2700/3000/3500/ 4000/5000                                                         Factory setting:50W & 4000K Voltage (V):0-10V Dim 120-277V     Listings: UL DLC Premium                      Stock TX:  723 CA: 27

Spec Sheet
IES File
Installation Guide

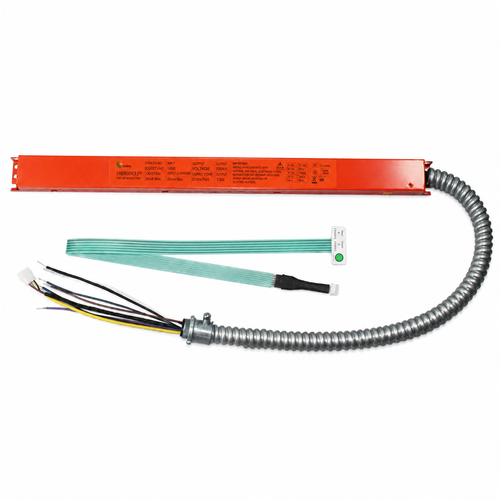

SB-EMLY15W27-XX

Product: Test Button on panel           frame

Battery type:        Lithium

Watts (W):                15
Lumens (lm):          1950
Operation minute:       90
Voltage (V):   120-277
Listings:             UL

Spec Sheet

SB-TBAR Mounting Kit

Type:   TBAR install on the grid ceiling for Emergency battery backup



Spec Sheet

SB-B-PM 2X2FT

Product: Surface mount frame

Size:                           2X2

SB-14-CABLE KIT

Product: Suspension Hanging Kit

Size:                           1X4



Spec Sheet

PLSKY22-W

Product: Skylight Frame

Size:                           2X2



Spec Sheet

SB-B-PM 1X4FT

Product: Surface mount frame

Size:                           1X4



Spec Sheet

SB-22LPZTRF-KIT-W

Product:Flange Kit for flat Panel & Troffer

Size:                           2X2

Spec Sheet& Installation sheet

PLSKY14-W

Product: Skylight Frame

Size:                           1X4



Spec Sheet

SB-B-PM 2X4FT

Product: Surface mount frame

Size:                           2X4



Spec Sheet

SB-24LPZTRF-KIT-W

Product:Flange Kit for flat Panel & Troffer

Size:                           2X4

Spec Sheet& Installation sheet

PLSKY24-W

Product: Skylight Frame

Size:                           2X4



Spec Sheet

SB-22-24-CABLE KIT

Product: Surface mount frame

Size:                           2X4



Spec Sheet

SB-14LPZTRF-KIT-W

Product:Flange Kit for flat Panel & Troffer

Size:                           1X4

Spec Sheet& Installation sheet
