Sigmalux

The Sensor Based Back-lit LED Panel Lighting Series combines high-performance illumination with intelligent lighting control capabilities for modern commercial environments. Featuring field-selectable wattage and 5CCT technology, this ultra-slim back-lit panel delivers exceptional efficiency, uniform light distribution, and simple installation for both new construction and retrofit projects. Sensor-ready with an integrated receptacle for plug-and-play occupancy and daylight controls, the series supports advanced DLC networked lighting control systems, energy monitoring, high-end trim, and optional Bluetooth wireless control.

Ideal for offices, conference rooms, schools, healthcare facilities, retail spaces, supermarkets, corridors, and other indoor commercial applications where energy savings and lighting flexibility are essential.

22LPZ16192632W27-5CCT

Size:                     2X2                                                            Watts (W):  16W/19W/26W/32W              Style:                 Field Selectable
Lumens(lm):2422lm/2994lm/3833lm/4649lm
CCT(K): 2700/3000/3500/4000/5000                  Factory setting: 32W 4000K
Voltage (V):       0-10V Dim 120-277V Listings: UL DLC Premium                           Stock TX:  1889  CA: 488

Spec Sheet
IES File
Installation Guide

24LPZ22303643W27-5CCT

Size:                           2X4                                            Watts (W):   22W/30W/36W/43W    Style:                      Field Selectable
Lumens(lm):3474lm/4459lm/5422lm/ 6329lm
CCT (K):         2700/3000/3500/4000/5000 Factory setting: 43W 4000K
Voltage (V):       0-10V Dim 120-277V
Listings: UL DLC Premium                        Stock TX:  2404  CA: 2082

Spec Sheet
IES File
Installation Guide

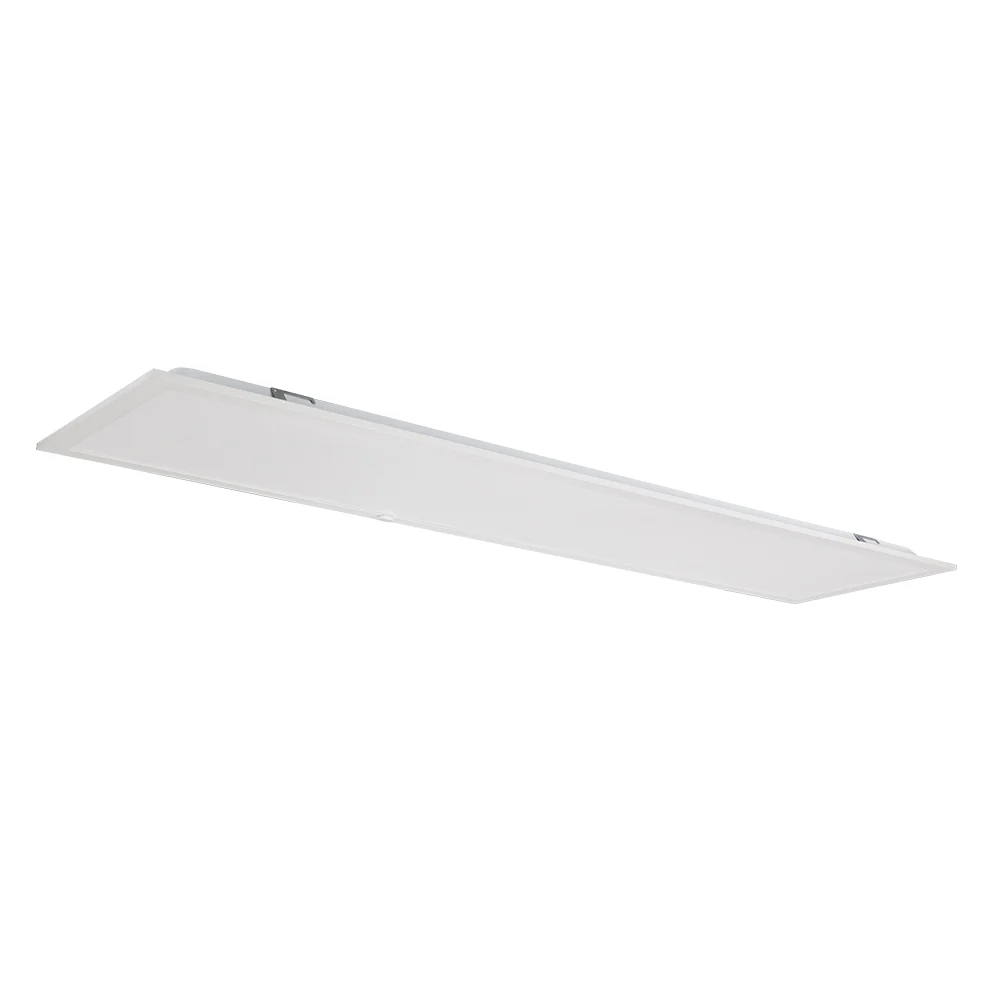

14LPZ16192632W27-5CCT

Size:                           1X4                                                Watts (W):       16W/19W/26W/32W    Style:                       Field Selectable
Lumens(lm):2496lm/3080lm/3929lm/4779lm
CCT (K): 2700/3000/3500/4000/5000 Factory setting: 32W 4000K
Voltage (V):       0-10V Dim 120-277V Listings: Listings: UL DLC Premium Stock TX:  499 CA: 276

Spec Sheet
IES File
Installation Guide

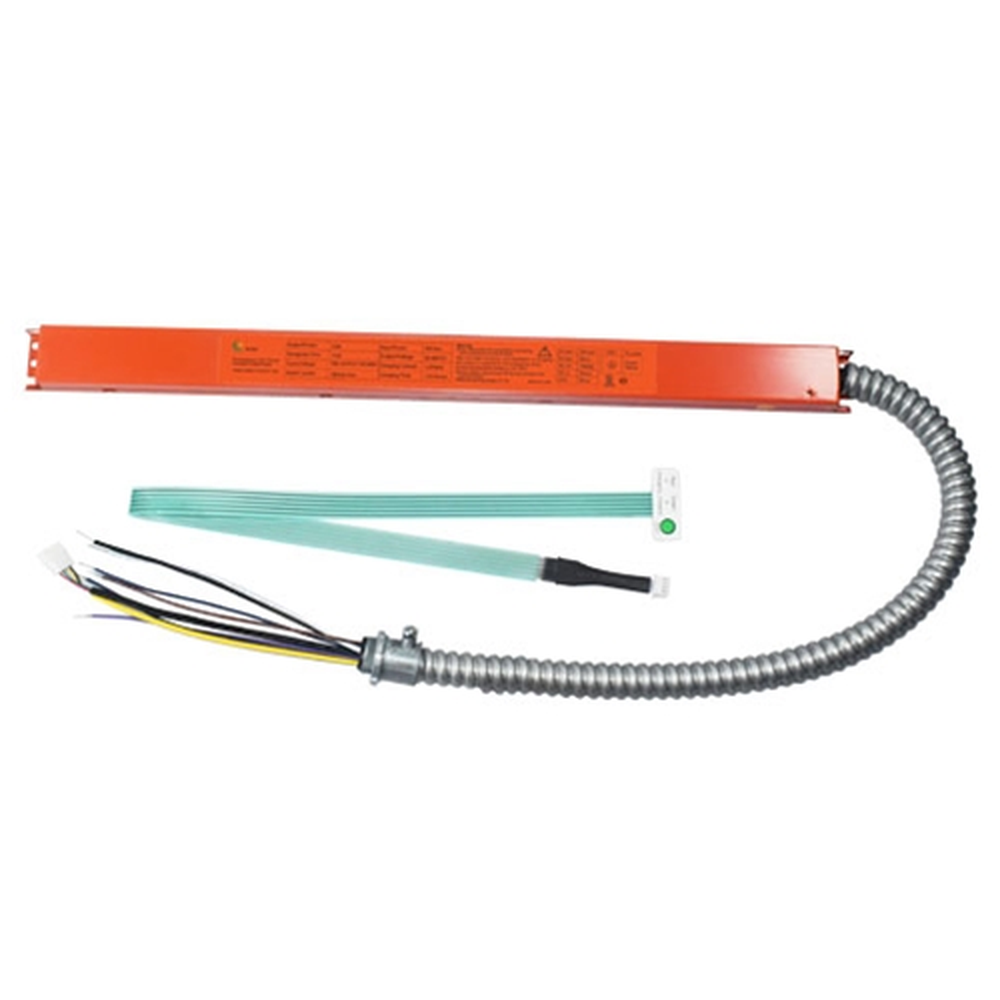

SB-EMLY15W27-XX

Product: Test Button on panel           frame

Battery type:        Lithium

Watts (W):                15
Lumens (lm):          1950
Operation minute:       90
Voltage (V):   120-277
Listings:             UL

Spec Sheet

SB-TBAR Mounting Kit

Type:   TBAR install on the grid ceiling for Emergency battery backup



Spec Sheet

SB-B-PM 2X2FT

Product: Surface mount frame

Size:                           2X2

SB-14-CABLE KIT

Product: Suspension Hanging Kit

Size:                           1X4



Spec Sheet

PLSKY22-W

Product: Skylight Frame

Size:                           2X2



Spec Sheet

SB-B-PM 1X4FT

Product: Surface mount frame

Size:                           1X4



Spec Sheet

SB-22LPZTRF-KIT-W

Product:Flange Kit for flat Panel & Troffer

Size:                           2X2

Spec Sheet& Installation sheet

PLSKY14-W

Product: Skylight Frame

Size:                           1X4



Spec Sheet

SB-B-PM 2X4FT

Product: Surface mount frame

Size:                           2X4



Spec Sheet

SB-24LPZTRF-KIT-W

Product:Flange Kit for flat Panel & Troffer

Size:                           2X4

Spec Sheet& Installation sheet

PLSKY24-W

Product: Skylight Frame

Size:                           2X4



Spec Sheet

SB-22-24-CABLE KIT

Product: Surface mount frame

Size:                           2X4



Spec Sheet

SB-14LPZTRF-KIT-W

Product:Flange Kit for flat Panel & Troffer

Size:                           1X4

Spec Sheet& Installation sheet
