VIEW PANELS & TROFFERS

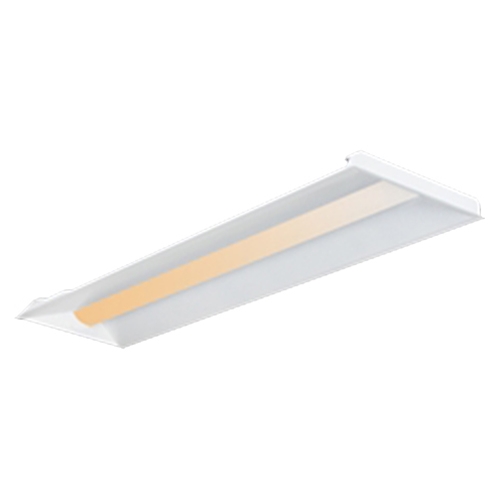

TRF Sensor based built in and Field-Selectable lumen output and color temperature Troffer, Excellent for Offices, Hallways, Multipurpose Rooms, Office Buildings, Conference Rooms, Supermarkets, Stores and many other applications.

22TRF202530W27-3545-G2

Size:                           2X2
Watts (W):          20/25/30
Lumens (lm):   2570/3125/3850
CCT (K):              3500/4000/5000 Factory setting: 30W 4000K
Voltage (V):   120-277
Listings:             UL

Spec Sheet
IES File
Installation Guide

14TRF202530W27-3545-G2

Size:                           1X4
Watts (W):          20/25/30
Lumens (lm):   2500/3225/3950
CCT (K):              3500/4000/5000    Factory setting:30W 4000K
Voltage (V):   120-277
Listings:             UL

Spec Sheet
IES File
Installation Guide

24TRF343845W27-3545-G2

Size:                           2X4
Watts (W):          34/38/45
Lumens (lm):   4250/4758/5715
CCT (K):              3500/4000/5000  Factory setting: 45W 4000K
Voltage (V):   120-277
Listings:             UL

Spec Sheet
IES File
Installation Guide

SB-EMLY15W27-XX

Battery type:                      lithium

Watts (W):          15
Lumens (lm):   1950
Operation minute:       90
Voltage (V):   120-277
Listings:             UL

Spec Sheet

Surface Mount

Size:                           2X2, 1X4, 2X4
Style:                        Field install

Spec Sheet

ANT-1P-4T

Type:          PIR & Daylight Harvesting Sensor  Style: Field install

Voltage (V):   120-277
Listings:             UL

Spec Sheet

ANT-1P-4T-BLE

Type:        Blue tooth   Sensor               Style: Field install

Voltage (V):   120-277
Listings:             UL

Spec Sheet

RC-100

Type:     Sensor programmable Remote          Listings:             UL

Spec Sheet

Skylight Frame

Size:                           2X2, 1X4, 2X4
Style:                        Field install

Spec Sheet

6FT-PRWG-38-3PIN

6FT 3PIN 3/8 inch Metal Flexible Conduit

6FT-PRWG-3/8-5PIN

6FT 3PIN 3/8 inch Metal Flexible Conduit

6FT PRWG-3/8-6PIN

6FT 6PIN 3/8 inch Metal Flexible Conduit

SB-TBAR Mounting Kit

Type:   TBAR install on the grid ceiling for Emergency battery backup
Style:   Field install

Spec Sheet
