Sigmalux

The Selectable Die-cast Aluminum Linear High Bay Light features a lightweight, slim-profile die-cast aluminum housing with field-selectable wattage and multiple mounting options, making it an ideal solution for a wide range of high-ceiling applications. Engineered for superior performance, it delivers high lumen output, excellent thermal management, and long-lasting reliability for demanding commercial and industrial environments.

This series is ideally suited for warehouses, manufacturing facilities, distribution centers, gymnasiums, factories, retail spaces, and other indoor applications where efficient, high-performance lighting is essential.

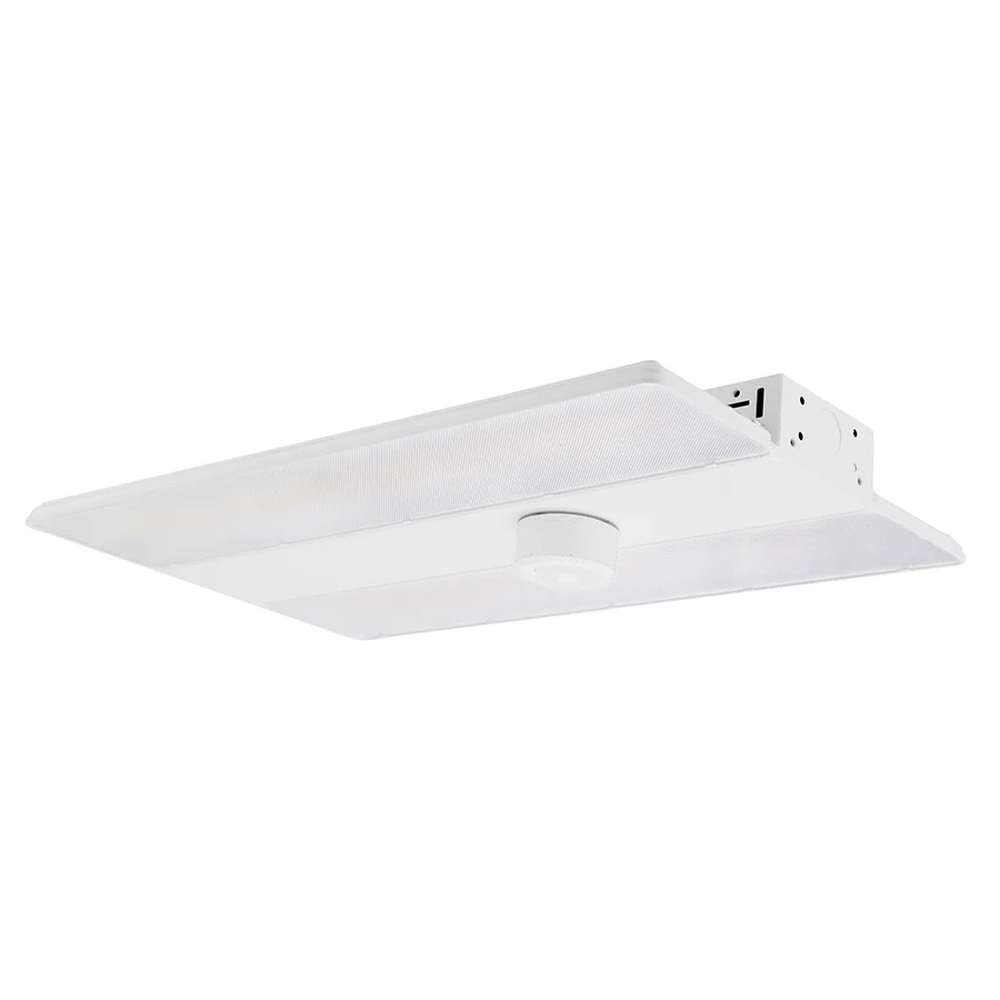

SB-LHB8121620W27-345K

Size                             18.11″x11.02″                                     Watts (W):         80/120/160/200
Style:                       Field Selectable
Lumens(lm):13265/18648/23282/29388
CCT (K):        3000/4000/5000       Factory setting:200W & 4000K
Voltage (V):       0-10V Dim 120-277V
Listings: UL                                                                    Stock TX:  840  CA: 33                                    Spec Sheet
IES File
Installation Guide

SB-EMS8W27-XX

Battery type:          Lithium                     Watts (W):                 8
Lumens (lm):           1200
Operation minute:  90
Voltage (V):               100-347
Listings: UL

Spec Sheet

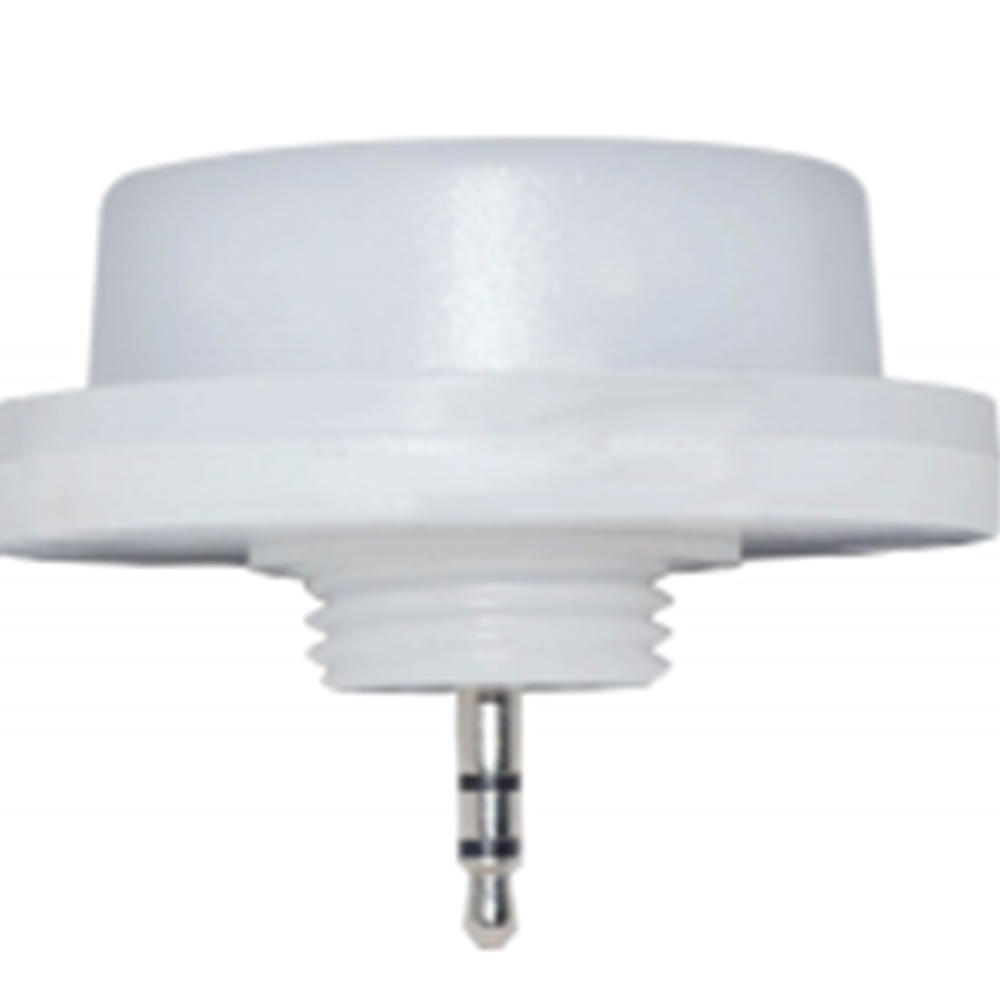

ANT-5-4T

Type:                Field plug & play Bi-Level Motion Sensor   Operation Voltage (V): 12-24
Control Output (V):                   0-10V
Listings:  UL

Spec Sheet

BRI-PP01

Type: Bluetooth Power Pack     Operation Voltage (V): 120-277
Control Output (V):                   0-10V
Listings:  UL                                                       Stock TX: 0

  Spec Sheet

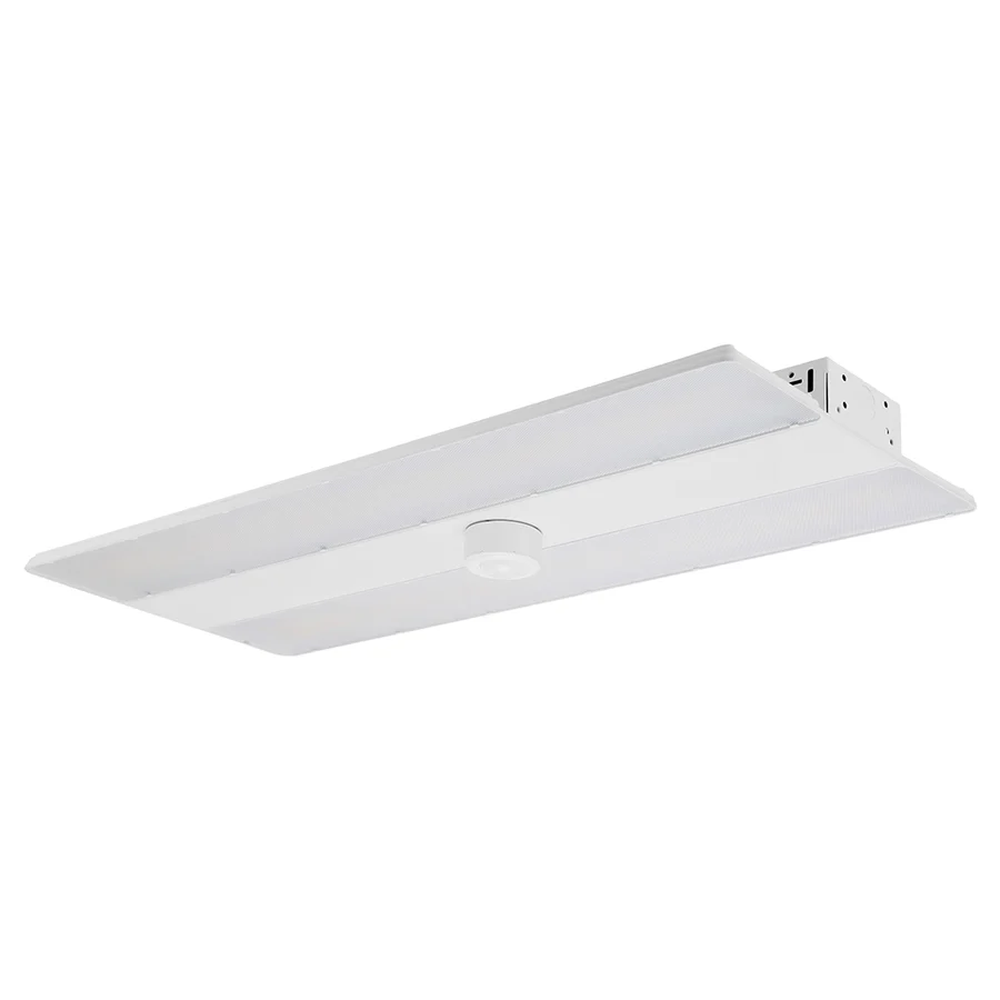

SB-LHB12182430W27-345K

Size:                        23.62″x9.84″                                         Watts (W):      120/180/240/300
Style:                     Field Selectable
Lumens(lm):20558/29789/38191/45305
CCT (K):               3000/4000/5000              Factory setting: 300W 4000K
Voltage (V):       0-10V Dim 120-277V
Listings: UL                                                                 Stock TX:  1000 CA: 30                                  Spec Sheet
IES File
Installation Guide

SB-EMS15W27-XX

Battery type:            Lithium                 Watts (W):                    15
Lumens (lm):               2250
Operation minute: 90
Voltage (V):                  100-347
Listings: UL

Spec Sheet

ANT-6-4T

Type:                Field plug & play Bi-Level Motion Sensor                        Supply Voltage (V): 12
Control Output (V):                   0-10V
Listings:  UL

  Spec Sheet

Kit-LHBG2

Type: Surface Mount Kit               Listings:  UL

Spec Sheet

SB-LHB16243240W27-345K

Size:                          36.22″x11.02″                                   Watts (W):        160/240/320/400
Style:                       Field Selectable
Lumens(lm):26810/37594/46691/58306
CCT (K):                3000/4000/5000    Factory setting: 400W 4000K
Voltage (V):       0-10V Dim 120-277V
Listings: UL                                                                        Stock TX:  59 CA: 30

Spec Sheet
IES File
Installation Guide

SB-EMS20W27-XX

Battery type:            Lithium                   Watts (W):                    20
Lumens (lm):              3000
Operation minute: 90
Voltage (V):                   100-347
Listings: UL

Spec Sheet

Gateway-SK18

Type:      Smart Engineering Gateway

Voltage (V):                   100-240



Spec Sheet

ANT-5-4T-BLE

Type:   Field  Plug & Play Bluetooth Microwave Sensor

Operation Voltage (V): 12-24
Control Output (V):                   0-10V
Listings:  UL

Spec Sheet

RC-100

Type:Sensor programmable Remote
Listings:  UL

Spec Sheet
