VIEW FULL GARAGE & CANOPY

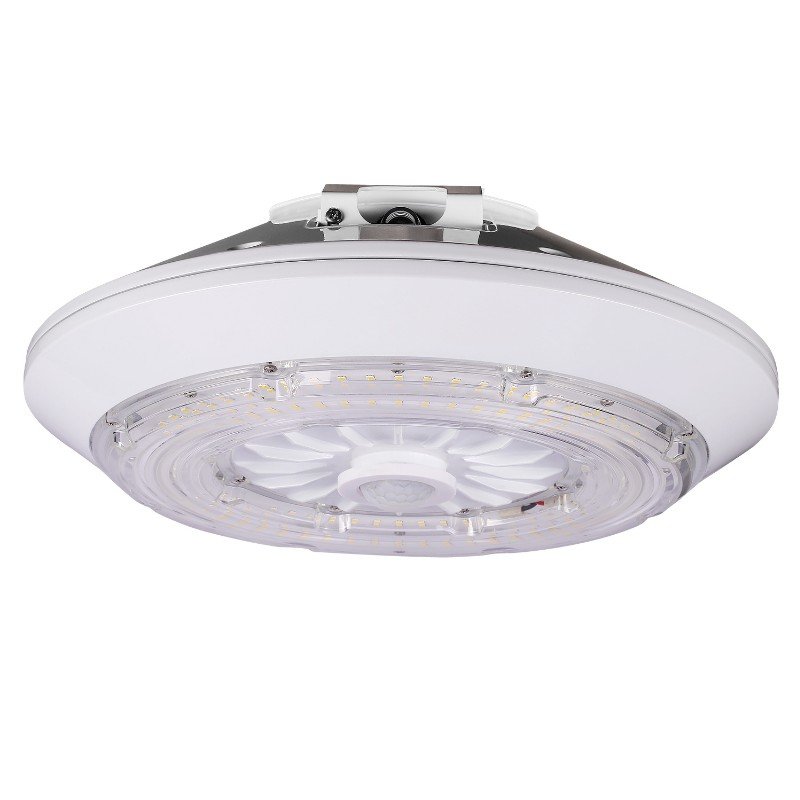

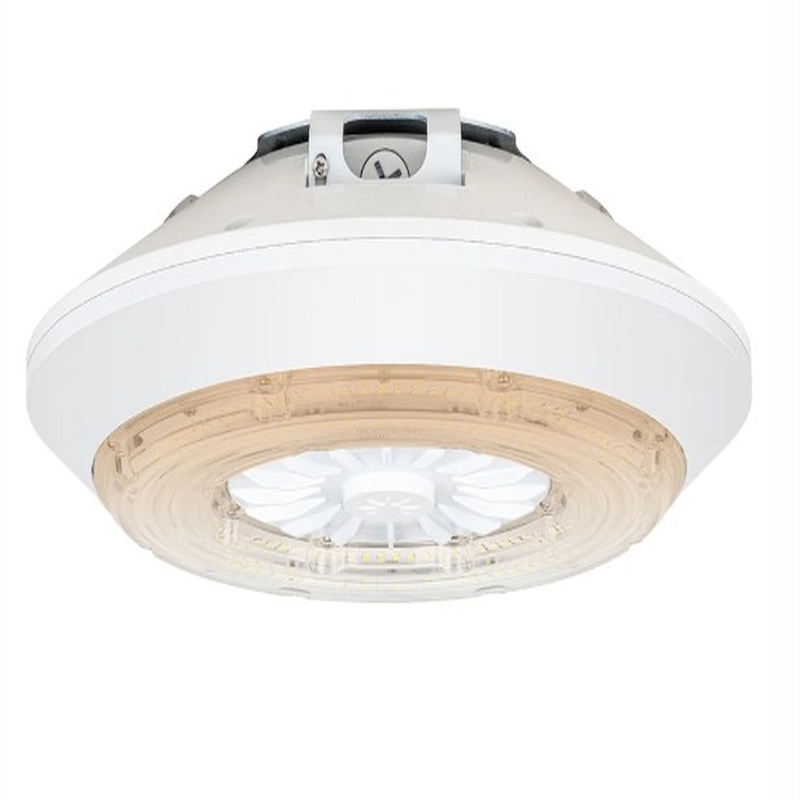

UPGC Uplight Parking Garage Canopy Lighting series offers Die Cast aluminum cooling design; Excellent optics design, greatly improve the light utilization and evenness. 11.4% uplight.

The UPGC widely used in indoor or outdoor lighting (wet location), like parking garages, mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station , indoor stadiums and lower cultivating tents etc.

SB-UPGC2842567W27-45K-D-P

Watts (W):          28/42/56/70                                             Optics :                 Up Lighting 11.4%,156 ̊                   Factory set:       70W 4000K                                                   Style:                        Field Selectable
Lumens (lm):   4326/5818/7321/9080
CCT (K):               4000/5000
Voltage (V):      1-10V Dim 120-277
Listings: UL                                                                                           Stock TX:  200  CA: 22

Spec Sheet
IES File
Installation Guide

EMS8W27-XX

Battery type:           lithium                                                       Watts (W):                  8
Lumens :                     1040
Operation minute:  90
Voltage (V):              100-277
Listings:                         UL

Spec Sheet

EMS15W27-XX

Battery type:           lithium                                                       Watts (W):                  15
Lumens :                     1950
Operation minute:  90
Voltage (V):              100-277
Listings:                         UL

Spec Sheet

EMS20W27-XX

Battery type:   lithium

Watts (W):          20
Lumens (lm):   2600
Operation minute:       90
Voltage (V):   120-277
Listings:             UL

Spec Sheet

JL-413C

Type:  Factory install Photocell


Voltage (V):   120-277
Listings:             UL

Spec Sheet

BRI810-B-M8

Type:                   Daylight Harvest Motion Sensor               Style:                   Factory installed

Voltage (V):   120-277
Listings:              UL

Spec Sheet



RC-100

Type:   Sensor programmable Remote  Listings: UL

Spec Sheet
